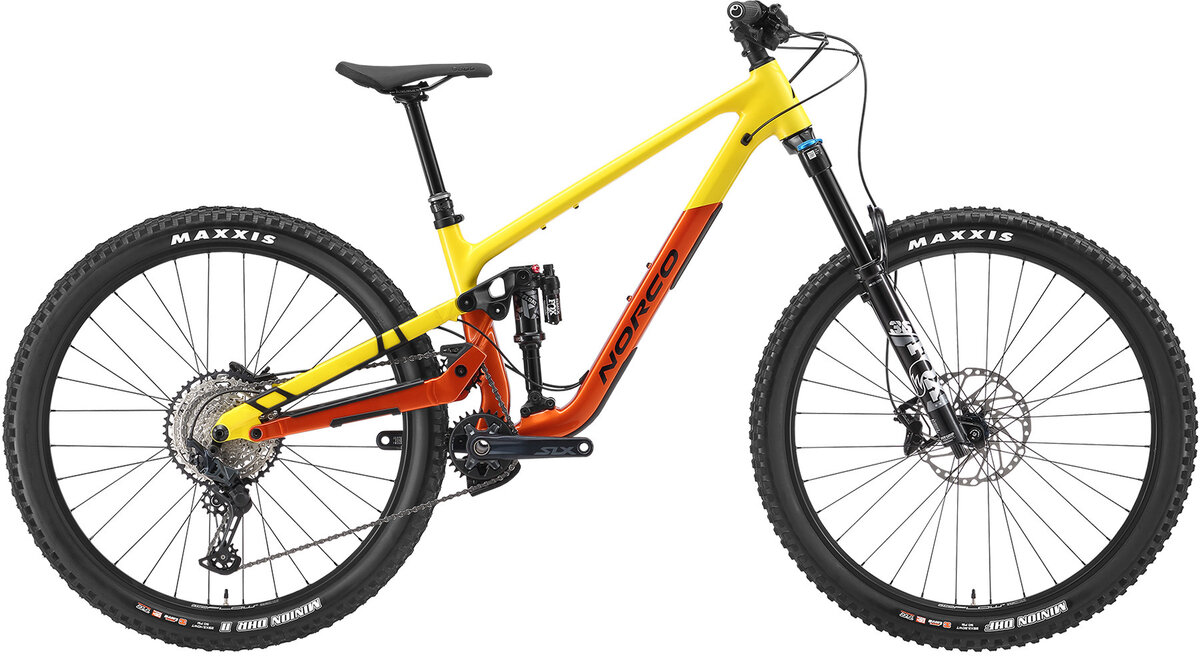

Norco Sight A2 - 29"

Norco Sight A2 - 29"
$5,049.00
Color:
Orange/Yellow
Please select options Unavailable
Order now and pick up in-store for free

Details

The everyday. The go-to. The all-rounder.

Featuring our all-new VPSHP suspension technology and enhanced Ride Aligned Setup Guide to dial your suspension like a pro. Maximum versatility without compromise; Light, maneuverable and confidence-inspiring in the rough stuff. The name hasn’t changed but the technology has.

The Norco Sight, evolved for 2024..
160mm/150mm of travel with 29" and MX options

With 160/150mm of travel, the 2024 Sight takes the best of the Range platform and has tightened it up into a light, pedal friendly, maneuverable, high-pivot package.

Vigorously tested with an optimized idler position, Sight’s precise anti-squat characteristics, balance traction, and efficiency on technical climbs gives the new Sight more confidence in rough terrain but?in a pedal-friendly, light, and maneuverable package.

29" and Mixed Wheel Sizes
Built to Accommodate Rider Preference.

Available with a 27.5" rear wheel (MX), as well as 29” in some markets. Swapping the link arm and lower shock mount with our 'Missing Link Kit' converts between 27.5" and 29" to let you pick the wheelsize that suits you best, while maintaining geometry and kinematics to ensure consistent fit and bike setup.

Suspension Setup Demystified

Norco’s NEW Ride Aligned Setup Guide with baked-in Setup Assistant provides a personalized setup baseline, unique to you and your bike without hours of fussing. It’s like having one of our engineers on call 24/7, as you tweak your settings to perfection. Even if you are a shock pump novice, the Ride Aligned Setup Guide will have you confidently dialing in your settings for the best day of riding, every day.
www.ridealigned.com

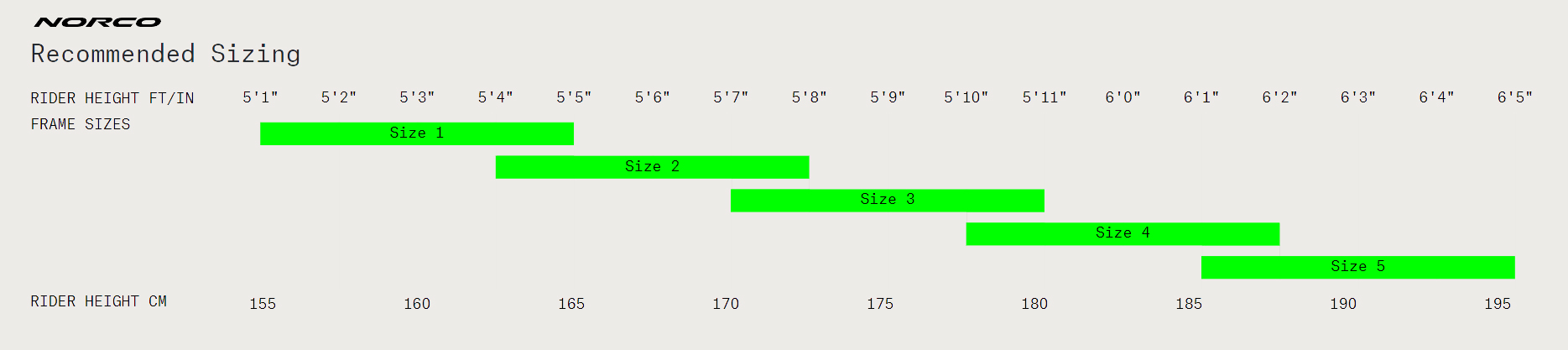

Sizes:
Frame Size12345
Wheel Size 29"/27.5" 29"/27.5" 29"/27.5" 29"/27.5" 29"/27.5"
Travel (mm front/mm rear) 160/150 160/150 160/150 160/150 160/150
Reach (mm) 422.5 447.5 472.5 497.5 522.5
Stack (mm) 618 627 636 645 654
Head Tube Angle 64° 64° 64° 64° 64°
Fork Offset (mm) 44 44 44 44 44
Seat Tube Length (mm) 350 370 385 430 445
Effective Seat Tube Angle 77° 77.25° 77.5° 77.75° 78°
Rear Centre Length (mm) 426 430 434 438 442
Bottom Bracket Drop (mm) 25/25 25/25 25/25 25/25 25/25
Bottom Bracket Height (mm) 353 353 353 353 353
Horizontal Top Tube (mm) 565 589 613 637 661
Wheelbase (mm) 1186 1219 1253 1286 1319
Standover (mm) 666 680 689 710 720
Head Tube Length (mm) 105 115 125 135 145
Trail (mm) 135 135 135 135 135
Recommended Seatpost Drop (mm) 150 170 200 200 230
Maximum Post Insertion (mm) 250 270 300 300 330
Stem Length (mm) 40 40 40 40 40
Crank Length (mm) 170 170 170 170 170
Tire Size 2.35" – 2.6" 2.35" – 2.6" 2.35" – 2.6" 2.35" – 2.6" 2.35" – 2.6"
Water Bottle Compatible 1 x 750 mL 1 x 750 mL 1 x 750 mL 1 x 750 mL 1 x 750 mL

Specs

Frame Sight Aluminum, VPS HP, 150mm Travel, UDH Compatible
Fork Fox FLOAT 36 Rhythm, Sweep Adjust, 160mm, 44mm Offset
Rear Shock Fox FLOAT X Performance, LSC LSR, 205x60mm Trunnion
Rims Stan's Flow D, Black 32H, 29"/29"
Hubs Shimano SLX 15x110mm Boost, Center Lock | Shimano SLX FH-M7110, Micro Spline, Center Lock
Spokes Black Stainless
Tires Maxxis Minion DHF 2.5", 3C, MaxxTerra / EXO+ / TR, Folding | Maxxis Minion DHR II 2.4" WT, 3C, MaxxTerra / EXO+ / TR, Folding
Bottom Bracket Shimano Sealed Bearing BSA Threaded
Crankset Shimano SLX HollowTech 2, FC-M7100, 32T, 170mm
Shifters Shimano SLX SL-M7100-R
Rear Derailleur Shimano SLX RD-M7100
Cassette/Freewheel Shimano SLX CS-M7100-12, 10-51T, 12 Speed
Chain Shimano Deore CN-M6100
Brakes Shimano Deore MT520 4 Piston, Metallic Pads
Rotors Shimano RT-64, 200mm | Shimano RT-64, 180mm
Brake Levers Shimano Deore MT-520
Handlebars 6061 Alloy, 800mm, 25mm Rise
Tape/Grips SDG THRICE
Stem Alloy, 40mm Length, 35mm Clamp
Headset FSA #57 E Sealed Bearing
Seatpost TranzX YS105 Dropper, 34.9mm, 150mm (1), 170mm (2), 200 (3, 4), 230mm (5)
Saddle SDG Bel Air V3

* Subject to change without notice.

Part Numbers

Option UPC Store SKU
Orange/Yellow / SZ1 058817673986 SIG24962712W
Orange/Yellow / SZ2 058817674112 SIG24661753W
Orange/Yellow / SZ3 058817674129 SIG24828338W
Orange/Yellow / SZ4 058817674136 SIG24872913W
Orange/Yellow / SZ5 058817674143 SIG24175461W
