Chromag Chromag Monk Short (26") - complete

Chromag Chromag Monk Short (26") - complete
$2,200.00
$2,600.00
Color: Bronze
Please select options Unavailable

Details

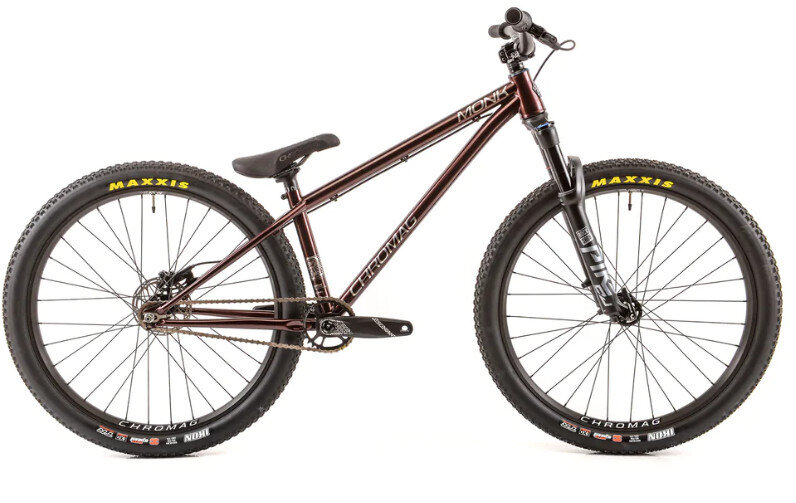

Chromag's classic 26" chromoly dirt jumper.

The Monk features Chromag's unique stainless steel horizontal dropout system for minimal complications with single-speed/disc brake setup. Their custom chain stays paired with dedicated DJ geometry offer you a light and incredibly stiff rear triangle on a low slung steel weapon.

The Monk now features their chain tug integrated into the dropout on both sides. This year Chromag is featuring a signature colourway designed by Chromag shredder and all-round nice guy Marcel Hunt.

Almost all Chromag frames are made from quality 4130 chromoly steel tubing. Chromoly is an abbreviation for chromium-molybdenum indicating the materials that the steel is alloyed with.

The added chromium helps increase the steels hardenability and also provide some corrosion resistance.
The molybdenum helps to increase the toughness of the steel.

It has a high tensile strength but is also malleable which is what gives our frames their notorious ride quality and feel. Chromoly is often used when more strength is required than that of mild carbon steel.

It falls under the AISI (American Iron & Steel Institute) 41XX designations which is where the “41” comes from. The “30” indicates it contains approximately 0.30% carbon by weight.

Chromoly is much stronger than traditional 1020 steel and it has a higher strength to weight ratio and high tensile strength, which means we can use less material and achieve a product that can withstand the abuse that riders love to throw at it.

Rear Hub Spacing // 135 x 10mm (Axle Not Included with frame-only)
Front Hub Spacing // 100 x 15mm
Headset // 44-56 Semi Integrated
Seat Clamp Size // Integrated
Seatpost Size // 31.6mm
BB // 73mm Threaded
Wheel Size // 26"
Recommended Fork Travel // 80 - 120mm

Specs

Frame 4130 chromoly steel tubing
Fork Rock Shox Pike DJ 100mm
Rims Chromag Ally 26" 32h.
Hubs Chromag D1 4 pawl 32h.
Tires Maxxis Ikon
Crankset Descendant 170mm
Cassette/Freewheel 16t Single Speed
Chain SS
Brakes SRAM Level (Rear Only)
Rotors 140mm
Handlebars Fubars FU40 40mm Rise, 780mm Wide
Tape/Grips Chromag Wax
Stem Chromag HiFi 31mm
Headset Cane Creek Forty ZS
Seatpost Chromag Bassix 31.6
Saddle Chromag Overture

* Subject to change without notice.

Part Numbers

Option MPN Store SKU
Bronze Monk-Bronze-Short-Comp CHR32661296T
