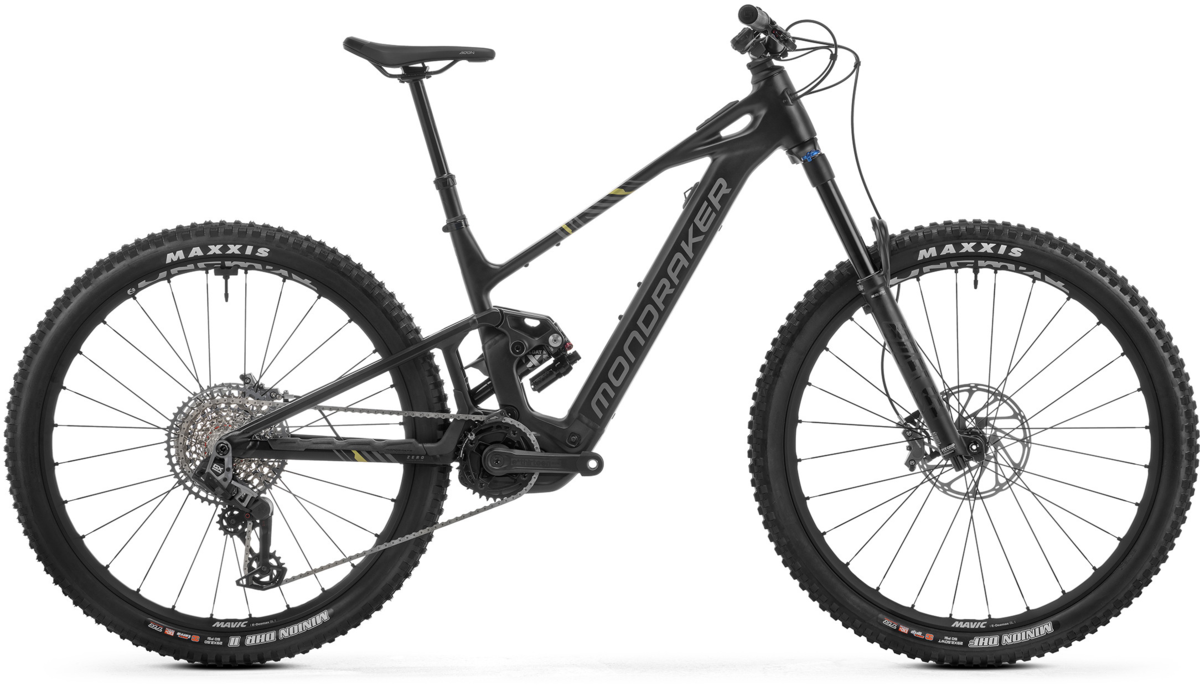

Mondraker Sly RR

Mondraker Sly RR
  • Color: Gray/Black/Yellow
$9,999.00
Color: Gray/Black/Yellow
Size: Select size
Wheel Size: 29-inch
Please select options Unavailable
Order now and pick up in-store for free

Details

Our most high-tech Stealth Alloy frame ever deserves nothing less than the best.

The RR build is a step up if you want to get even more out of your SLY. FOX suspension provides the 160mm Fox 36 29 Float Performance GRIP fork and a Fox Float X Performance EVOL shock. SRAM Code Bronze Stealth 4-piston brakes with 200mm rotors keep things from getting out of hand on the steeps, and Mavic E-CrossTrail SL 30mm wheels offer the best balance of compliance/rigidity out there. ONOFF has you covered with a selection of components from the all-new S6 range and includes a carbon fibre bar, a stem, grips and the Pija seatpost with lengths varying from 140mm to 210mm depending on frame size. The SLY RR comes in the gorgeous Black / Nimbus Grey / Tonic Gold colourway.

Sizes:
Frame sizeSmallMediumMedium/LargeLargeX-Large
Seattube length 380 mm 410 mm 435 mm 460 mm 490 mm
Toptube length 595 mm 615 mm 635 mm 660 mm 685 mm
Bottom bracket drop -22 mm -22 mm -22 mm -22 mm -22 mm
Bottom bracket height 350 mm 350 mm 350 mm 350 mm 350 mm
Chainstay length 455 mm 455 mm 455 mm 455 mm 455 mm
Seat tube angle 74º 74º 74º 74º 74º
Effective seattube angle 77º 77º 77º 77º 77º
Headtube angle 64,5º 64,5º 64.5º 64,5º 64,5º
Fork Offset 44 mm 44 mm 44 mm 44 mm 44 mm
Wheelbase 1225 mm 1250 mm 1265 mm 1290 mm 1315 mm
Headtube length 120 mm 120 mm 130 mm 140 mm 150 mm
Reach 440 mm 460 mm 480 mm 500 mm 520 mm
Stack 633 mm 633 mm 642 mm 651 mm 660 mm

Specs

Frame 6061 Alloy Stealth Evo, hydroformed tubing, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Fork Fox 36 29 Float Performance GRIP, 160mm, 3 Position, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: sweep adjust compression, low-speed rebound, air preload
Rear Shock Fox Float X Performance EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Rims Mavic E-CrossTrail SL, 29 Boost 30mm internal width, hookless, tubeless ready, 28 spokes
Hubs Front: Mavic Infinity hub, Boost 15x110mm, IS 6 bolts
Rear: Mavic Infinity hub, ID360 freewheel technology, Boost 12x148mm, IS 6 bolts XD freehub
Spokes Mavic 28 straight-pull double butted spokes
Tires Front: Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX GRIP compound, EXO+ protection, 60TPI, folding bead
Rear: Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 60TPI, folding bead
Crankset e*Thirteen Helix Core E*Spec Plus, All sizes: 160mm
Chainrings SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Shifters SRAM Eagle AXS Pod MMX, 12s
Rear Derailleur SRAM GX Eagle AXS T-Type,12s
Cassette/Freewheel SRAM XS-1275, 10-52T, T-Type, 12s
Chain SRAM GX Eagle T-Type, 12s, Powerlock
Brakes SRAM Code Bronze Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake Levers SRAM Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust
Handlebars Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
Tape/Grips Onoff Forest, CNC lock-on, 135mm
Stem Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
Headset Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Seatpost Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)
Saddle Fizik Terra Aidon X5 145mm
Pedals Sold Separately
Motor Bosch Performance Line SX (20 Mph) GEN4 SMART SYSTEM Diagonal, Wide
Battery Bosch Compact Powertube 400Wh
Controller/Display Purion 400 / Bosch Mini Remote / Bosch System Controller

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Gray/Black/Yellow / Small / 29-inch 08435392895422 MO-010-25US228
Gray/Black/Yellow / Medium / 29-inch 08435392895439 MO-010-25US229 SLY6623302M
Gray/Black/Yellow / Medium/Large / 29-inch 08435392895446 MO-010-25US230 SLY7290218L
Gray/Black/Yellow / Large / 29-inch 08435392895453 MO-010-25US231
Gray/Black/Yellow / X-Large / 29-inch 08435392895460 MO-010-25US232
