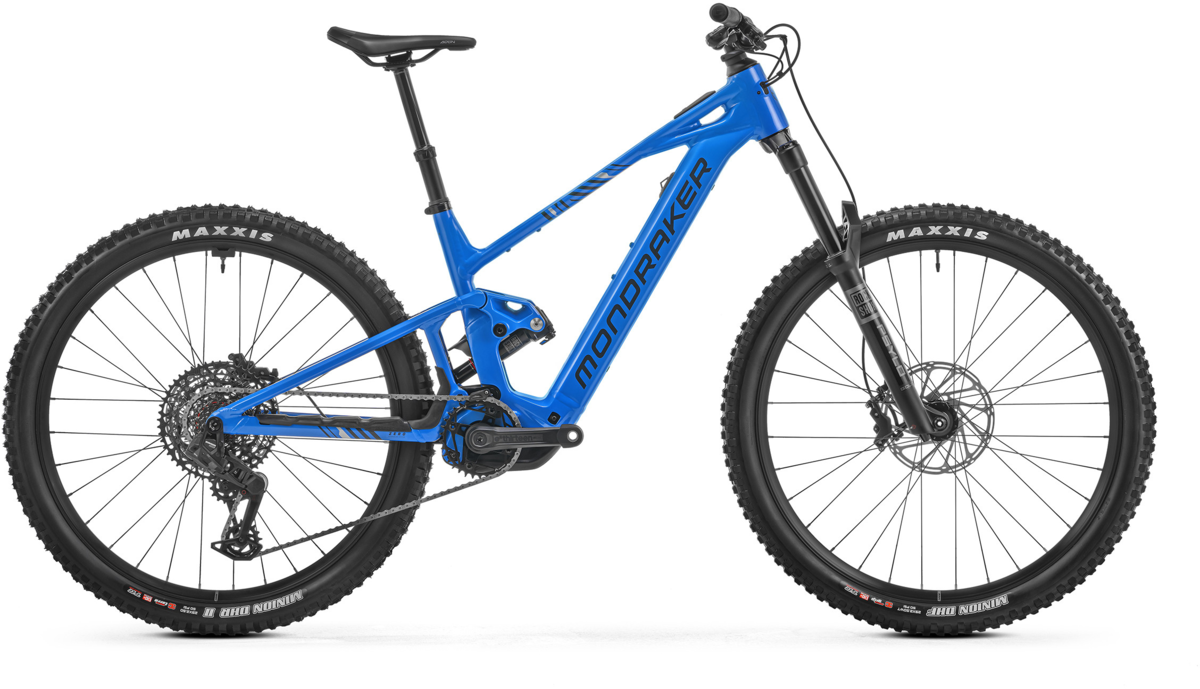

Mondraker Sly R

Mondraker Sly R
  • Color: Blue/Obsidian/Silver
$8,599.00
Color: Blue/Obsidian/Silver
Size: Select size
Wheel Size: 29-inch
Please select options Unavailable
Order now and pick up in-store for free

Details

Access a world of SLY. Access the best cost performance out there.

The R build offers RockShox suspension with a Psylo Gold RC 160mm fork paired with a Rockshox Deluxe Select+ shock; SRAM 4 piston DB8 Stealth brakes to keep things firmly under control, and Mavic 29”, 30mm E-CrossRide 29 wheels for reliability and strength. Our component brand ONOFF supplies the handlebar, grips and stem from its S3 range, while the S6 range offers up the Pija seatpost in lengths from 140mm to 210mm depending on frame size. The SLY R comes in the spectacular Marlin Blue / Racing Silver / Obsidian Grey colourway.

Sizes:
Frame sizeSmallMediumMedium/LargeLargeX-Large
Seattube length 380 mm 410 mm 435 mm 460 mm 490 mm
Toptube length 595 mm 615 mm 635 mm 660 mm 685 mm
Bottom bracket drop -22 mm -22 mm -22 mm -22 mm -22 mm
Bottom bracket height 350 mm 350 mm 350 mm 350 mm 350 mm
Chainstay length 455 mm 455 mm 455 mm 455 mm 455 mm
Seat tube angle 74º 74º 74º 74º 74º
Effective seattube angle 77º 77º 77º 77º 77º
Headtube angle 64,5º 64,5º 64.5º 64,5º 64,5º
Fork Offset 44 mm 44 mm 44 mm 44 mm 44 mm
Wheelbase 1225 mm 1250 mm 1265 mm 1290 mm 1315 mm
Headtube length 120 mm 120 mm 130 mm 140 mm 150 mm
Reach 440 mm 460 mm 480 mm 500 mm 520 mm
Stack 633 mm 633 mm 642 mm 651 mm 660 mm

Specs

Frame 6061 Alloy Stealth Evo, hydroformed tubing, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles,exclusive plastic motor covers.
Fork Rockshox Psylo Gold RC, 160mm, 3 Position, Debon Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload
Rear Shock Rockshox Deluxe Select+, 185x55mm, Trunnion top mount, 30x8mm bottom bushings
Rims Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
Hubs Front: Mavic, Boost 15x110mm, IS 6 bolts
Rear: Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub
Spokes Mavic J-bend double butted, contactless lacing
Tires Front: Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX GRIP compound, EXO+ protection, 60TPI, folding bead
Rear: Maxxis Minion DHR II 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 60TPI, folding bead
Crankset e*Thirteen Helix Core E*Spec Plus, All sizes: 160mm
Chainrings SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Shifters SRAM Eagle AXS Pod MMX, 12s
Rear Derailleur SRAM S1000 Eagle AXS T-Type, 12s
Cassette/Freewheel SRAM XS-1270, 10-52T, T-Type, 12s
Chain SRAM GX Eagle T-Type, 12s, Powerlock
Brakes SRAM DB8 stealth, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake Levers SRAM DB8, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
Handlebars Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
Tape/Grips Onoff Forest, CNC lock-on, 135mm
Stem Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore
Headset Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Seatpost Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)
Saddle Fizik Terra Aidon X5 145mm
Pedals Sold Separately
Motor Bosch Performance Line SX (20 Mph) SMART SYSTEM Diagonal, Wide
Battery Bosch Compact Powertube 400Wh
Controller/Display Purion 400 / Bosch Mini Remote / Bosch System Controller

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Blue/Obsidian/Silver / Small / 29-inch 08435392895378 MO-010-25US223 SLY5113767S
Blue/Obsidian/Silver / Medium / 29-inch 08435392895385 MO-010-25US224
Blue/Obsidian/Silver / Medium/Large / 29-inch 08435392895392 MO-010-25US225
Blue/Obsidian/Silver / Large / 29-inch 08435392895408 MO-010-25US226 SLY5660569L
Blue/Obsidian/Silver / X-Large / 29-inch 08435392895415 MO-010-25US227
