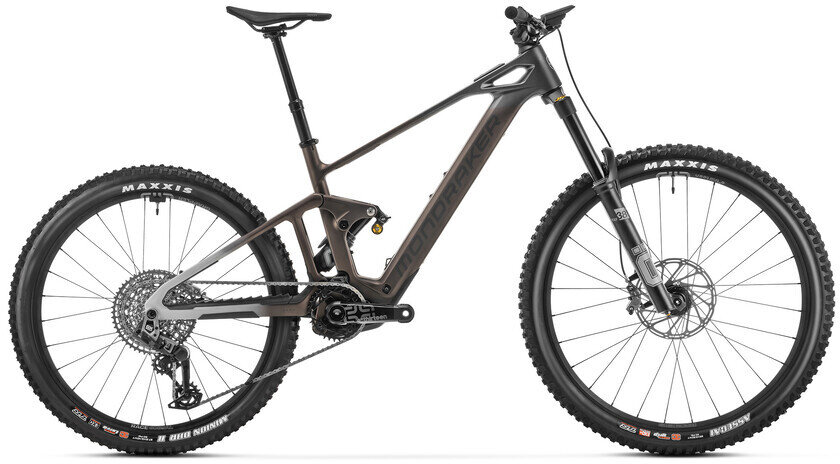

Mondraker DUNE RR

Mondraker DUNE RR
This item is currently not available.

Details

The intermediate build comes with a 170mm Öhlins RXF 38 M.2 29 fork, Öhlins TTX Air 205X65mm shock, SRAM transmission with GX Eagle AXS T-Type rear mech, E.13 E*Spec Plus cranks, ONOFF Pija dropper post, SRAM Code Bronze Stealth 4-pot brakes and e*thirteen Grappler Race wheels with 30mm wide aluminium rims.

SPECS:
Frame: Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal & removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Sizes: S: 380mm / M: 420mm / L: 450mm / XL: 490mm
Rear Shock: Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Shock Settings: C20 compression, R35 rebound. Volume reducers 12.000 (2xF+1D)
Fork: Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
Headset: Acros custom for 1-1/2"" head tube, angular contact bearings 40x52x7, Internal cable routing
Stem: Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar: Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips: Onoff Desert, 1lock-on, 135mm
Seatpost: Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
Saddle: Fizik Terra Aidon Slim X5
Front Brake: Sram Code Bronze Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear Brake: Sram Code Bronze Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake Lever: Sram Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust
Rims: e*thirteen Grappler Race, Hookless 6069 Welded Aluminum
30mm internal width, tubeless ready, 28F spokes 29 front, 27''5 rear
Spokes: e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers
Front Hub: e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear Hub: e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub
Front Tire: Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Rear Tire: Maxxis Minion DHR II 27’5x2.4 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead
Crankset: E.13 E*Spec Plus,, S size: 165mm M size: 165mm L size: 170mm XL size: 170mm
Rings: Sram X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55
Chain: Sram GX Eagle T-Type, 12s, Powerlock
Rear Derrailleur: Sram GX Eagle AXS, T-Type roller bearing clutch, cage lock, 1x12s
Shift Levers: Sram Eagle AXS Pod MMX, 12s
Cassette: Sram XS-1275, 10-52T, T-Type, 12s
Motor: Bosch Performance Line SX (20 mph) GEN4 SMART SYSTEM Diagonal, Wide
Battery: Bosch Compact Powertube 400Wh
Display: Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller
Weight: 43,32 lb

(subject to change without notice)

Part Numbers

Option UPC MPN Store SKU
Bronze / Large 8435392888493 MO-010-24US260 MON32848996E
