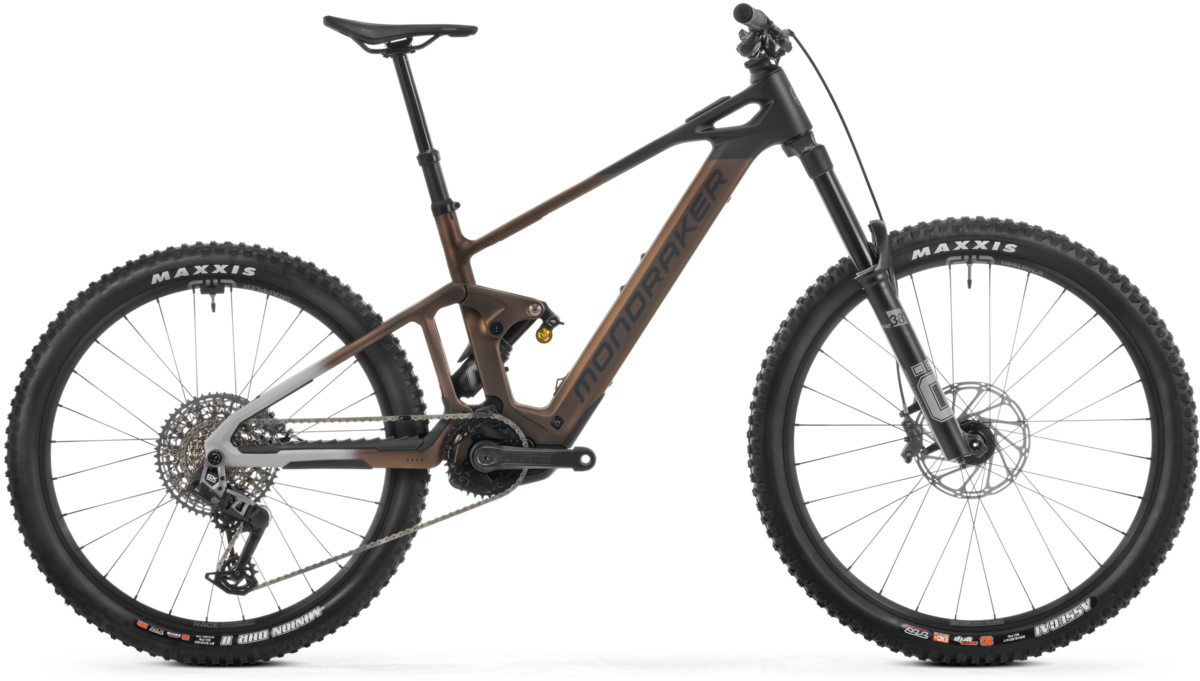

Mondraker Dune RR

Mondraker Dune RR
  • Color: Bronze/Dark Gray
  • Color: Bronze
$12,999.00 - $14,199.00
$12,999.00 - $14,199.00
Color:
Size: Select size
Wheel Size: 29-inch front / 27.5-inch rear
Please select options Unavailable
Order now and pick up in-store for free

Details

The intermediate build comes with a 170mm Öhlins RXF 38 M.2 29 fork, Öhlins TTX Air 205X65mm shock, SRAM transmission with GX Eagle AXS T-Type rear mech, E.13 E*Spec Plus cranks, ONOFF Pija dropper post, SRAM Code Bronze Stealth 4-pot brakes and e*thirteen Grappler Race wheels with 30mm wide aluminium rims.

Sizes:
Frame sizeSmallMediumLargeX-Large
Seattube length 380mm 420mm 450mm 490mm
Toptube length 600mm 620mm 645mm 665mm
Bottom bracket drop -21/0mm -21/0mm -21/0mm -21/0mm
Bottom bracket height 352mm 352mm 352mm 352mm
Chainstay length 445mm 445 mm 445mm 445mm
Seat tube angle 74,0º 74,0º 74,0º 74,0º
Effective seattube angle 77,5° 77,5° 77,5° 77,5°
Headtube angle 64º 64º 64º 64º
Fork Offset 44mm 44mm 44mm 44mm
Wheelbase 1232mm 1260mm 1285mm 1309mm
Headtube length 100mm 110mm 130mm 140mm
Reach 445mm 465mm 485mm 505mm
Stack 621mm 630mm 648mm 658mm

Specs

Frame Stealth Air full Carbon, Updated Zero Suspension System, Mullet, 165mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Fork Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
Rear Shock Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
Rims e*thirteen Grappler Race, Hookless 6069 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27''''5 rear
Hubs Front: e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear: e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub
Spokes e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers
Tires Front: Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead
Rear: Maxxis Minion DHR II 27’5x2.4 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 2x120TPI, folding bead
Crankset e*Thirteen Helix Core E*Spec Plus, All sizes: 160mm
Chainrings SRAM X-Sync 2 Eagle 34T T-Type, steel, narrow-wide, 104 BCD CL55
Shifters SRAM Eagle AXS Pod MMX, 12s
Rear Derailleur SRAM GX Eagle AXS T-Type,12s
Cassette/Freewheel SRAM XS-1275, 10-52T, T-Type, 12s
Chain SRAM GX Eagle T-Type, 12s, Powerlock
Brakes SRAM Code Bronze Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake Levers SRAM Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust
Handlebars Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.
Tape/Grips Onoff Forest, CNC lock-on, 135mm
Stem Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore
Headset Acros custom IS52/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock
Seatpost Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), L size: 180-155mm (468-275mm), XL size: 210-185mm (528-305mm)
Saddle Fizik Terra Aidon Slim X5
Pedals Sold Separately
Motor Bosch Performance Line SX (20 Mph) GEN4 SMART SYSTEM Diagonal, Wide
Battery Bosch Compact Powertube 400Wh
Controller/Display Purion 400 / Bosch Mini Remote / Bosch System Controller

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Bronze / Small / 29-inch front / 27.5-inch rear 08435392888479 MO-010-24US258 DUN13508243S
Bronze / Medium / 29-inch front / 27.5-inch rear 08435392888486 MO-010-24US259 DUN13976828M
Bronze / Large / 29-inch front / 27.5-inch rear 08435392888493 MO-010-24US260
Bronze / X-Large / 29-inch front / 27.5-inch rear 08435392888509 MO-010-24US261 DUN14854560L
Bronze/Dark Gray / Small / 29-inch front / 27.5-inch rear 08435392896412 MO-010-25US258 DUN7253562S
Bronze/Dark Gray / Medium / 29-inch front / 27.5-inch rear 08435392896429 MO-010-25US259 DUN7219732M
Bronze/Dark Gray / Large / 29-inch front / 27.5-inch rear 08435392896436 MO-010-25US260 DUN7712660L
Bronze/Dark Gray / X-Large / 29-inch front / 27.5-inch rear 08435392896443 MO-010-25US261 DUN8597741L
